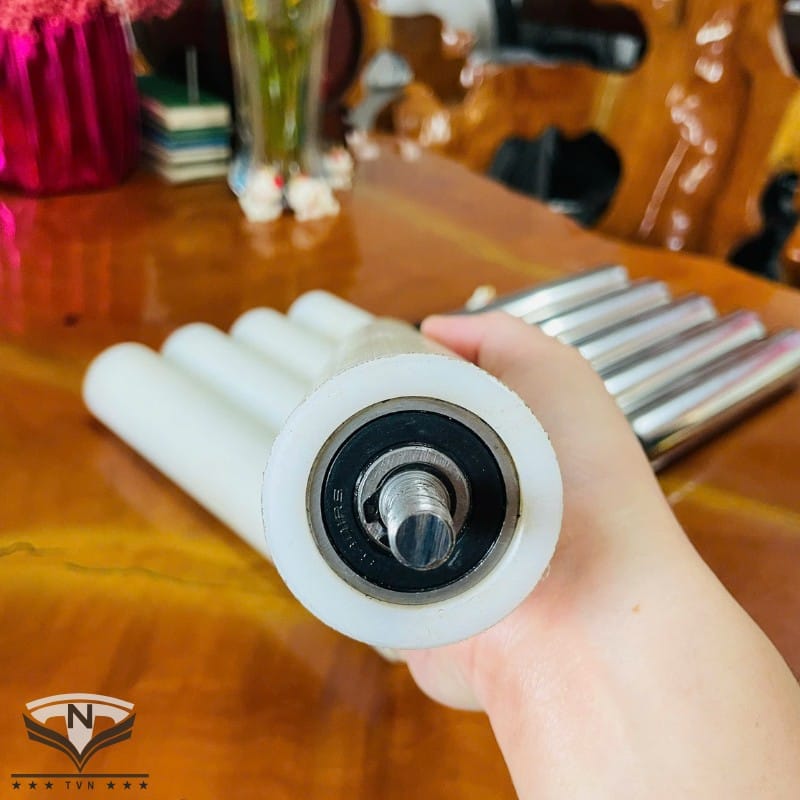

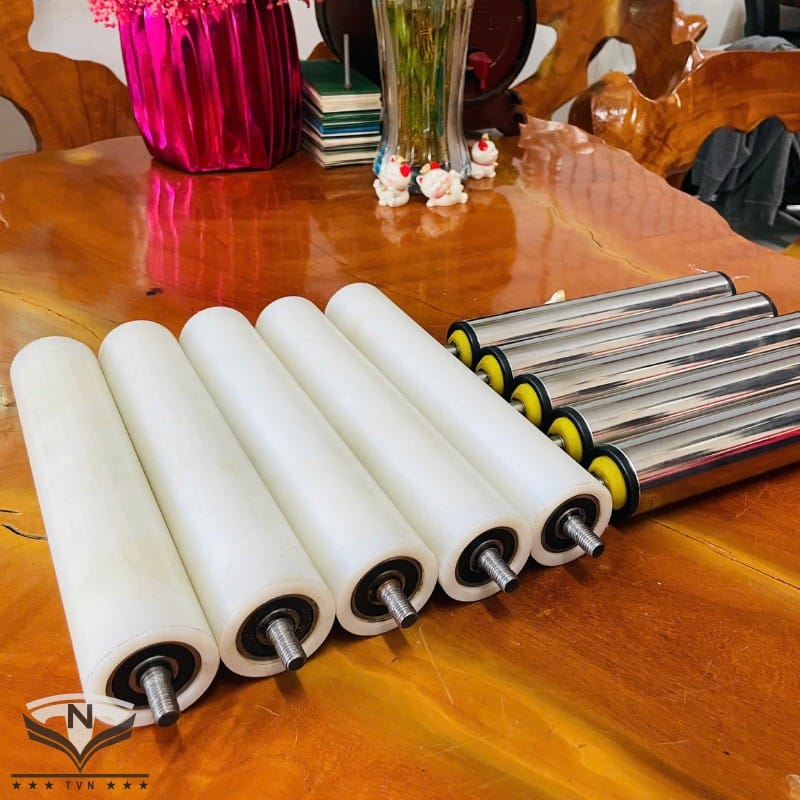

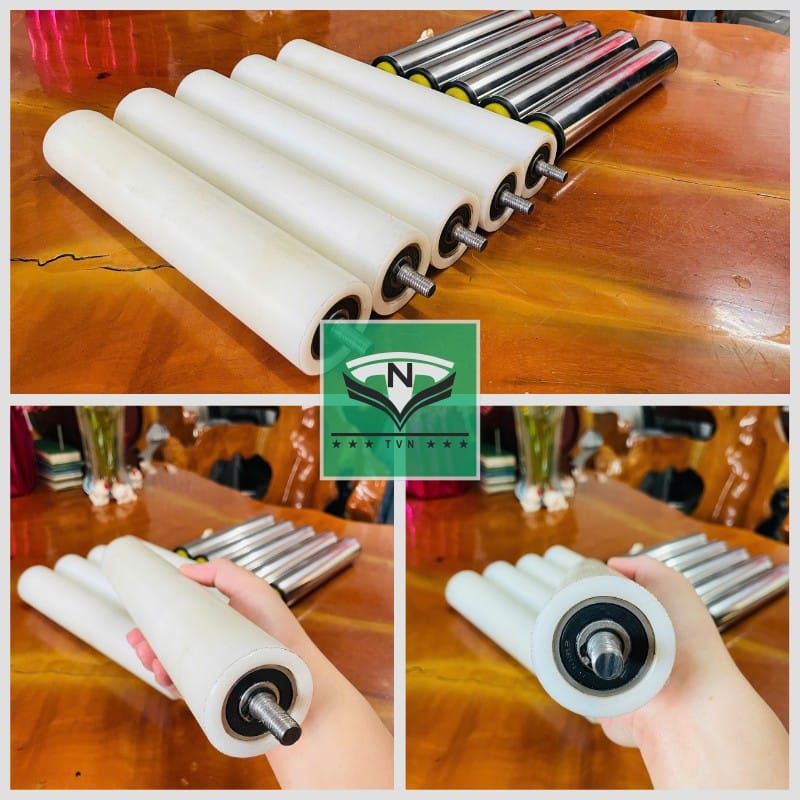

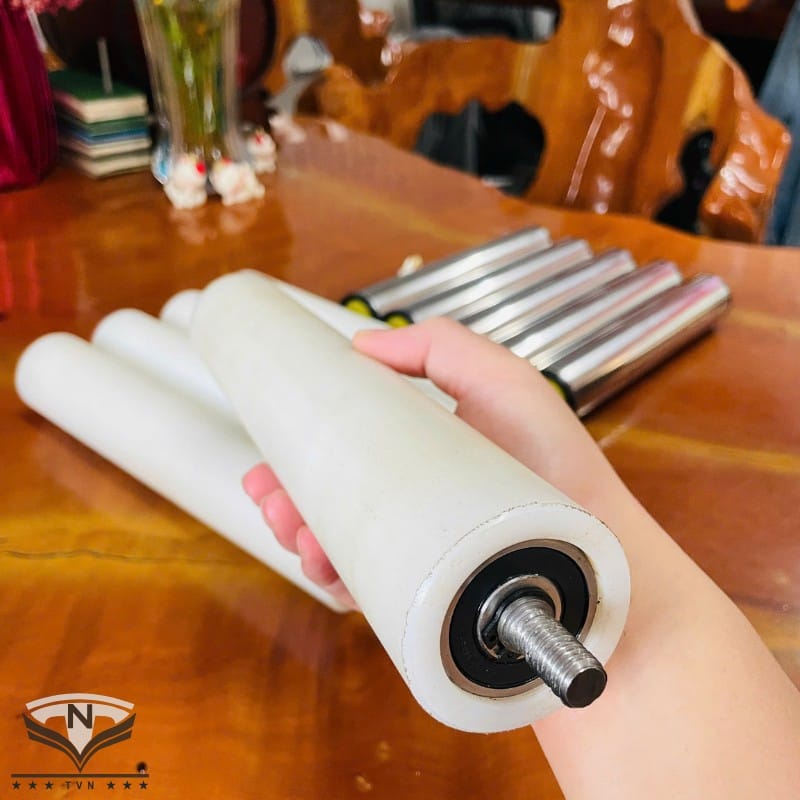

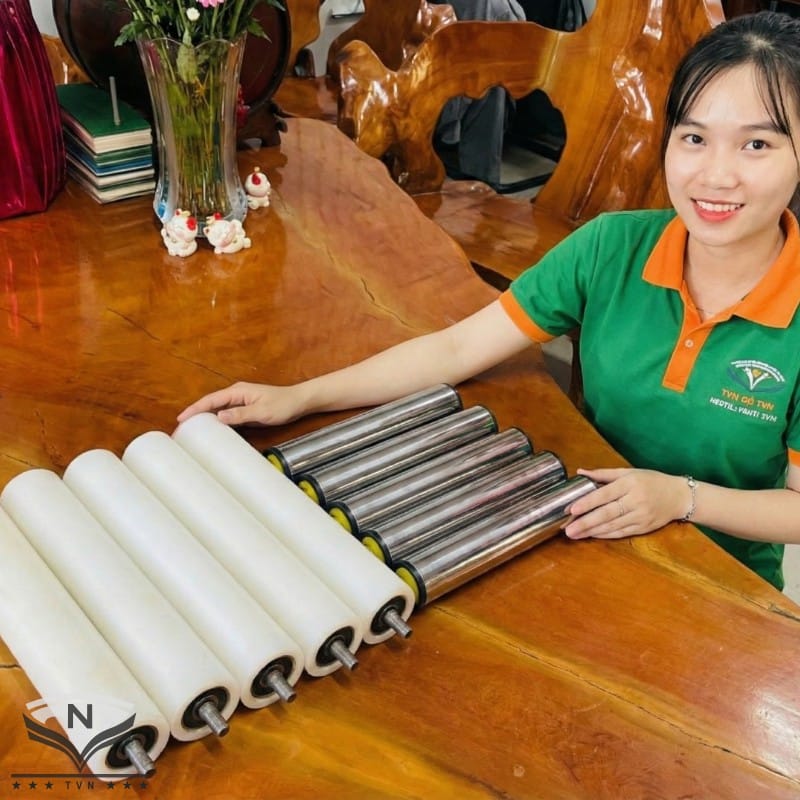

PE Plastic Roller
0 ₫
The PE Plastic Roller (Polyethylene) is the premier solution for environments demanding rigorous hygiene standards and superior non-stick properties. Machined from virgin PE (typically HDPE or UHMWPE), this product features a smooth, odorless, and non-toxic surface with exceptional non-stick capabilities.
This makes the PE roller the #1 choice for the food processing industry (confectionery, meat & poultry, flour, etc.), where hygiene and preventing material buildup on the conveyor are top priorities. Additionally, PE material performs excellently in low-temperature environments (cold storage) and resists mild chemicals.
Technical Specifications:
- Tube Diameter (Ø): 50mm / 60mm / 76mm / 89mm (Or custom fabricated upon request)
- Tube Material: PE Plastic (HDPE) / UHMW-PE
- Color: White (Most common) / Blue / Black
- Features: Non-stick, abrasion-resistant, Food Grade compliant, excellent low-temperature resistance.
- Shaft Material: Stainless Steel 304 (Recommended) / Galvanized Steel
- Shaft Diameter (Ø): 12mm / 15mm / 20mm
- Shaft End Type: Internal Thread (Female) / Milled Flats / Keyway
- Bearing Type: Steel / Stainless Steel / Plastic Bearings
- Load Capacity: 20 – 100 kg/roller (Depending on plastic type and dimensions)
- Origin: Machined at TVN Mech
Please fill out the form below, and we will contact you with a detailed quotation!
Reviews (1)
1 review for PE Plastic Roller
Add a review
Ordering Guide
Thank you for your interest in the custom machining services at TVN Mech. Below are the ordering process and some important notes to ensure a smooth transaction.
Ordering Process:
- Submit Request: Please provide detailed information about the product you need machined (technical drawings, images, dimensions, materials, quantity) via Hotline/Zalo: 0946 507 052.
- Consultation & Quotation: The TVN Mech engineering team will review your request, advise on the optimal solution, and send a detailed quotation within 24 business hours.
- Order Confirmation & Deposit: Once the solution is agreed upon, please confirm the order and proceed with the deposit (typically 30-50% of the total order value).
- Production: TVN Mech will proceed with manufacturing the product according to the confirmed technical specifications.
- Inspection & Delivery: Upon completion, products will undergo quality control. We will notify you for final acceptance/inspection and proceed with delivery.
- Delivery Time: These are custom-made products and are not in stock. Production and delivery time ranges from 1-7 business days depending on the complexity and quantity.
- Pricing: Product prices depend on material specifications and order quantity. Please contact us directly via Hotline/Zalo 0946 507 052 for the most accurate quote.
- Return Policy: As these are custom-manufactured items based on specific requirements, we do not accept returns unless there is a technical defect caused by TVN Mech manufacturing incorrectly against the agreed specifications.
- Detailed Policies: For more information regarding payment, shipping, and warranty regulations, please visit our Sales Policy page.
