Ø49mm Steel Conveyor Roller
0 ₫

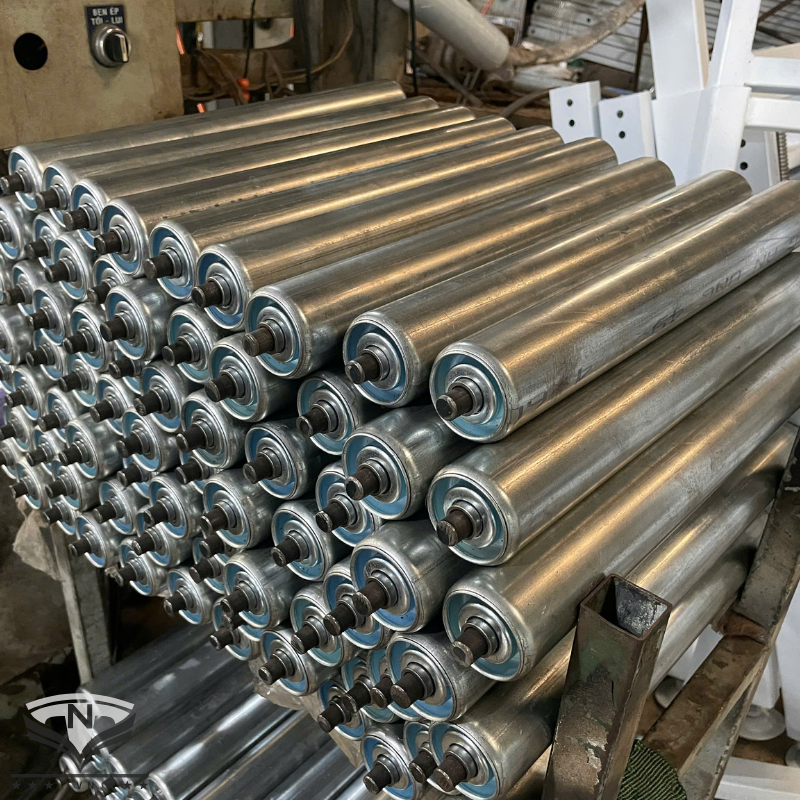

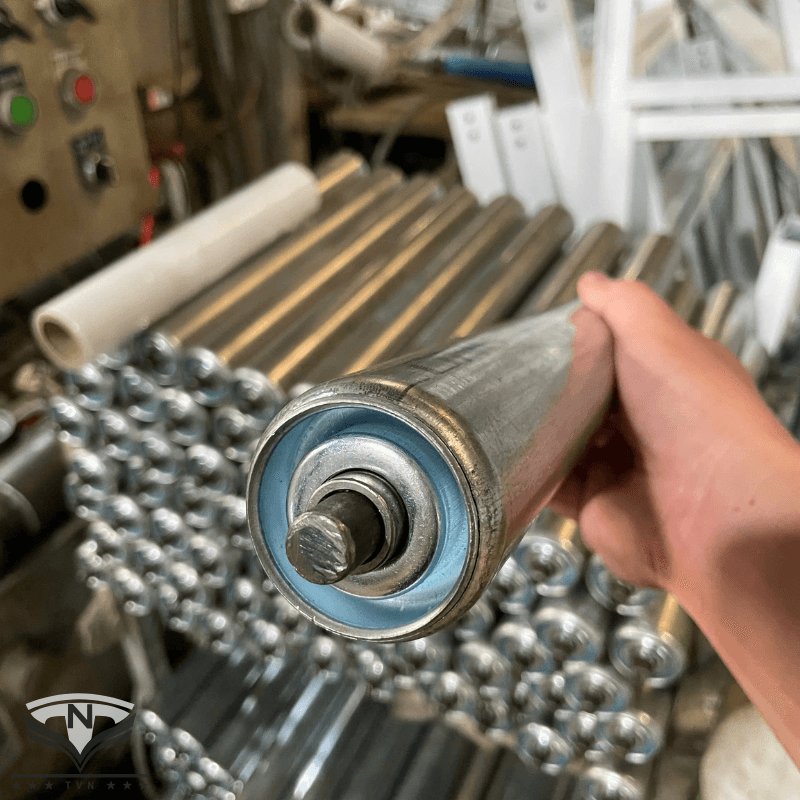

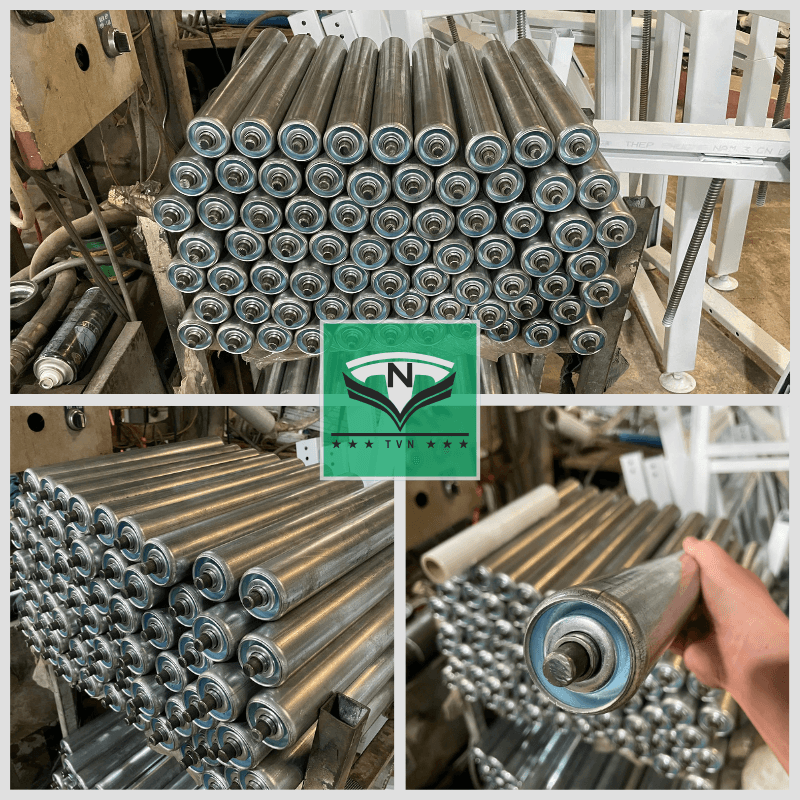

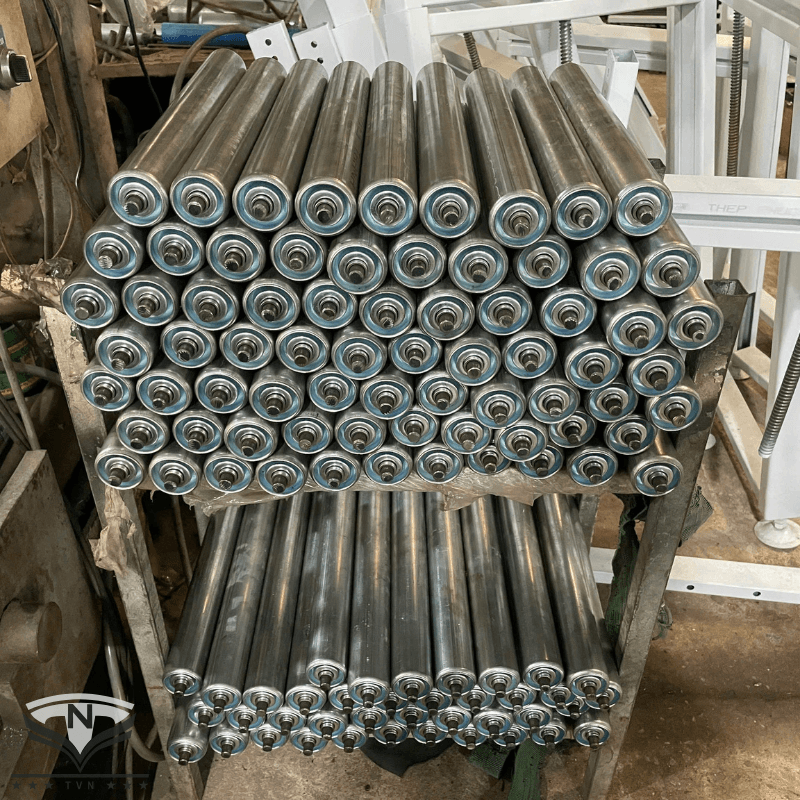

The Ø49mm Steel Roller (D49) is the most versatile and widely used roller series in industrial conveyor systems. With its optimal size, the D49 roller effectively meets transport requirements for light to medium loads, specifically carton boxes, plastic trays, and components on assembly lines.
At TVN Mech, we provide custom fabrication for Ø49mm rollers with full options regarding materials, shaft styles, and bearing types to best suit your specific application.
Technical Specifications:
- Tube Diameter (Ø): 49mm
- Tube Material: Steel
- Surface Treatment: Galvanized (Zinc Plated), Anti-rust Paint, Rubber/PU Lagging
- Wall Thickness: 1.2mm – 2.0mm
- Shaft Material: Steel
- Shaft Diameter (Ø): 10mm – 15mm (Or custom upon request)
- Shaft End Type: Internal Thread (Female), Milled Flats, Spring Loaded, Hexagonal (Optional)
- Bearing Type: Plastic Bearing Housing / Galvanized Steel Bearing Housing
- Load Capacity: 50 – 80 kg/roller (Depending on specifications)
- Origin: Machined at TVN Mech
Please fill out the form below, and we will contact you with a detailed quotation!
Reviews (1)
1 review for Ø49mm Steel Conveyor Roller
Add a review
Ordering Guide
Thank you for your interest in the custom machining services at TVN Mech. Below are the ordering process and some important notes to ensure a smooth transaction.
Ordering Process:
- Submit Request: Please provide detailed information about the product you need machined (technical drawings, images, dimensions, materials, quantity) via Hotline/Zalo: 0946 507 052.
- Consultation & Quotation: The TVN Mech engineering team will review your request, advise on the optimal solution, and send a detailed quotation within 24 business hours.
- Order Confirmation & Deposit: Once the solution is agreed upon, please confirm the order and proceed with the deposit (typically 30-50% of the total order value).
- Production: TVN Mech will proceed with manufacturing the product according to the confirmed technical specifications.
- Inspection & Delivery: Upon completion, products will undergo quality control. We will notify you for final acceptance/inspection and proceed with delivery.
- Delivery Time: These are custom-made products and are not in stock. Production and delivery time ranges from 1-7 business days depending on the complexity and quantity.
- Pricing: Product prices depend on material specifications and order quantity. Please contact us directly via Hotline/Zalo 0946 507 052 for the most accurate quote.
- Return Policy: As these are custom-manufactured items based on specific requirements, we do not accept returns unless there is a technical defect caused by TVN Mech manufacturing incorrectly against the agreed specifications.
- Detailed Policies: For more information regarding payment, shipping, and warranty regulations, please visit our Sales Policy page.
