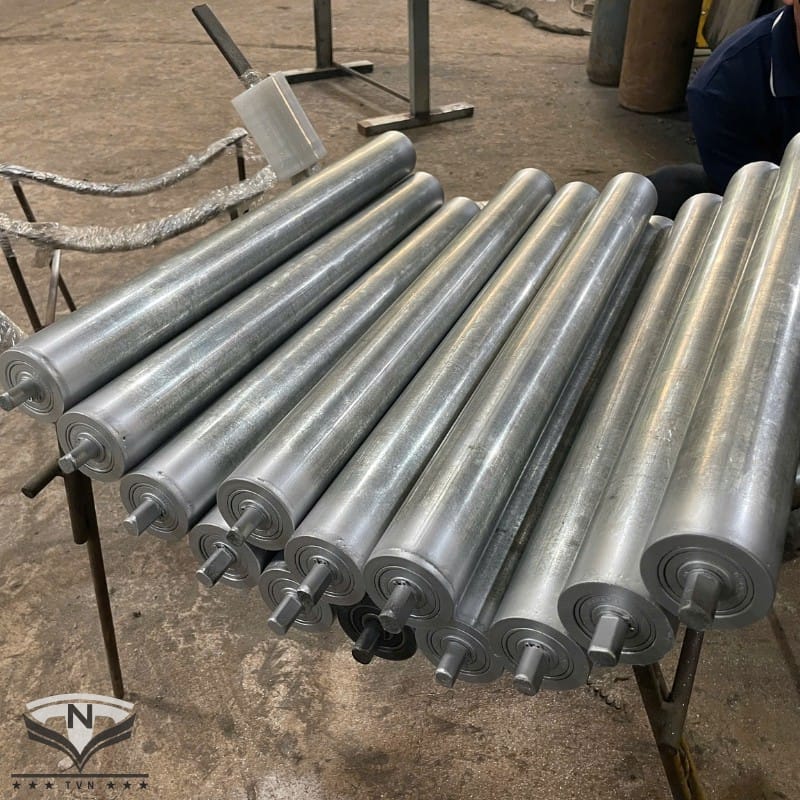

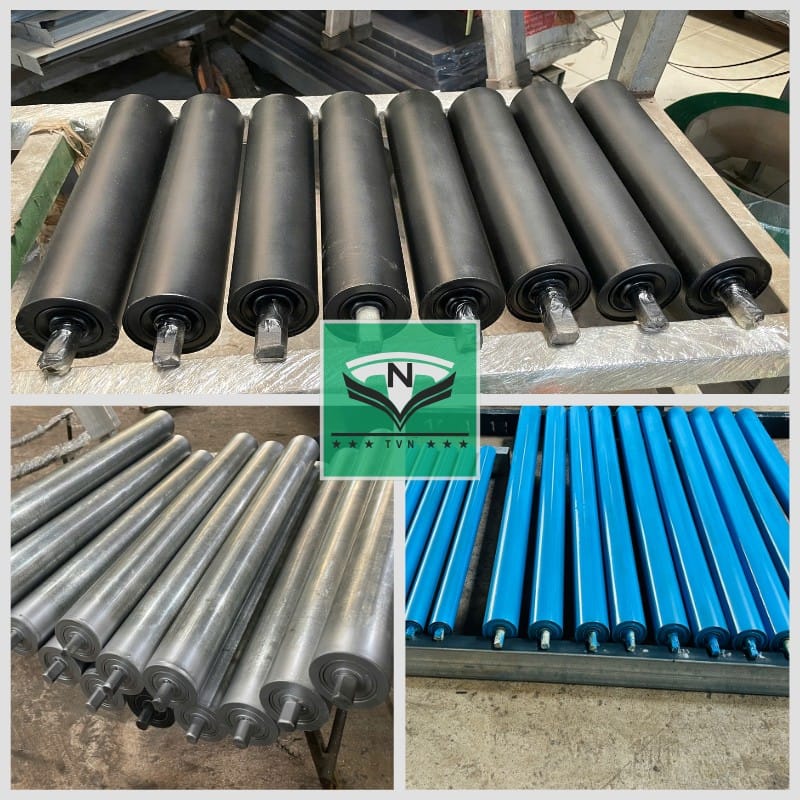

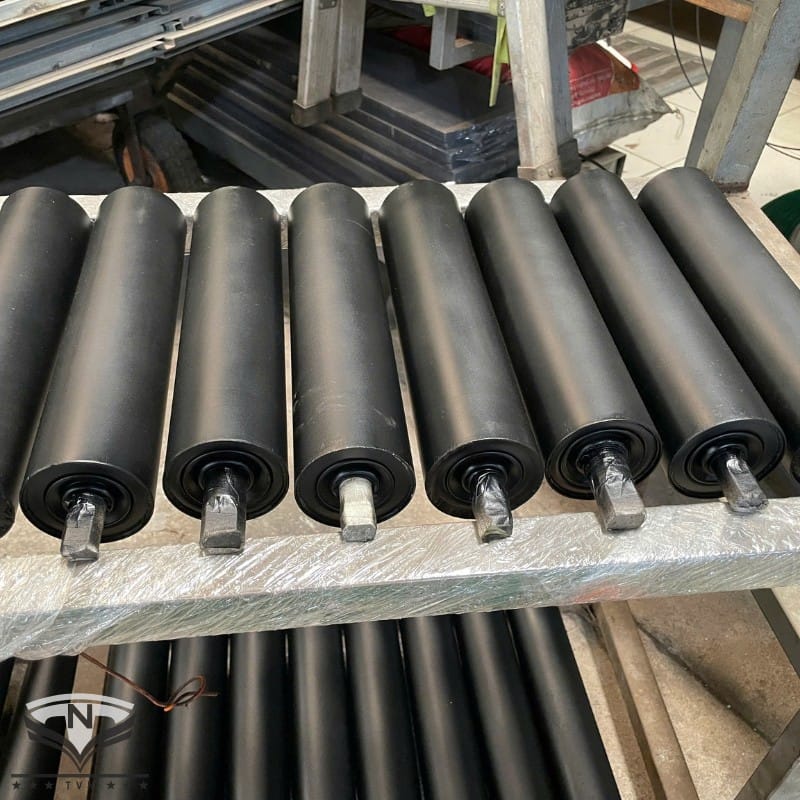

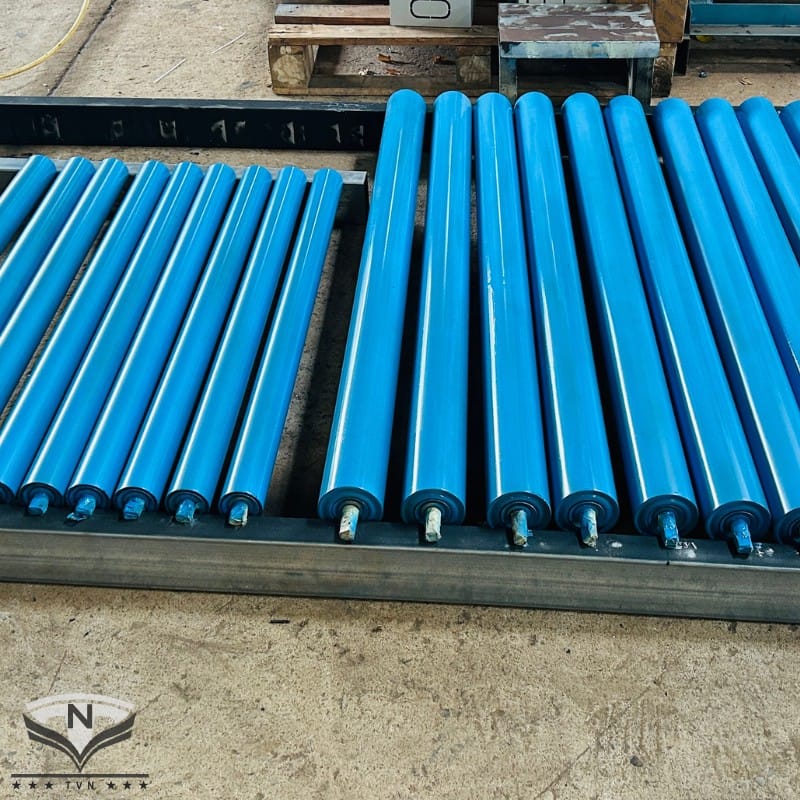

Ø76mm Heavy Duty Roller (Steel / Stainless Steel)
0 ₫
Featuring a large diameter and a robust, thick-walled structure, the Ø76mm Roller (D76) is specifically designed to withstand high loads and ensure stable operation within long conveyor systems.
This is the indispensable choice for transporting heavy pallets, large crates, or for applications in heavy industries such as mining, cement, wood processing, and large-scale logistics where durability is paramount.
Technical Specifications:
- Tube Diameter (Ø): 76mm
- Tube Material (Optional): Steel / Stainless Steel 304
- Wall Thickness: 2.0mm / 3.0mm / 4.0mm (Reinforced thickness for superior load bearing)
- Shaft Material (Optional): Steel / Stainless Steel 304
- Shaft Diameter (Ø): 17mm / 20mm / 25mm (Large shaft diameter to prevent deflection/bending)
- Shaft End Type: Internal Thread (Female), Milled Flats, Keyway (Optional)
- Bearing Type: Machined Steel Bearing Housing (High load capacity) / Precision Brand Bearings (SKF, NSK, Koyo 6204, 6205…)
- Load Capacity: 100 – 400 kg/roller (Depending on material and shaft specifications)
- Origin: Machined at TVN Mech
Please fill out the form below, and we will contact you with a detailed quotation!
Reviews (1)
1 review for Ø76mm Heavy Duty Roller (Steel / Stainless Steel)
Add a review
Ordering Guide
Thank you for your interest in the custom machining services at TVN Mech. Below are the ordering process and some important notes to ensure a smooth transaction.
Ordering Process:
- Submit Request: Please provide detailed information about the product you need machined (technical drawings, images, dimensions, materials, quantity) via Hotline/Zalo: 0946 507 052.
- Consultation & Quotation: The TVN Mech engineering team will review your request, advise on the optimal solution, and send a detailed quotation within 24 business hours.
- Order Confirmation & Deposit: Once the solution is agreed upon, please confirm the order and proceed with the deposit (typically 30-50% of the total order value).
- Production: TVN Mech will proceed with manufacturing the product according to the confirmed technical specifications.
- Inspection & Delivery: Upon completion, products will undergo quality control. We will notify you for final acceptance/inspection and proceed with delivery.
- Delivery Time: These are custom-made products and are not in stock. Production and delivery time ranges from 1-7 business days depending on the complexity and quantity.
- Pricing: Product prices depend on material specifications and order quantity. Please contact us directly via Hotline/Zalo 0946 507 052 for the most accurate quote.
- Return Policy: As these are custom-manufactured items based on specific requirements, we do not accept returns unless there is a technical defect caused by TVN Mech manufacturing incorrectly against the agreed specifications.
- Detailed Policies: For more information regarding payment, shipping, and warranty regulations, please visit our Sales Policy page.
