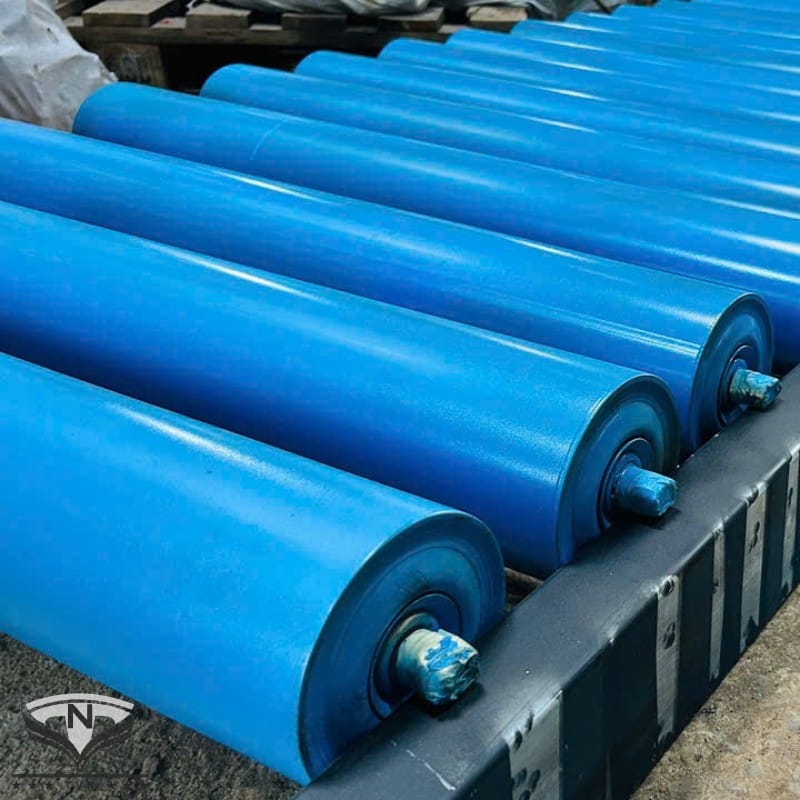

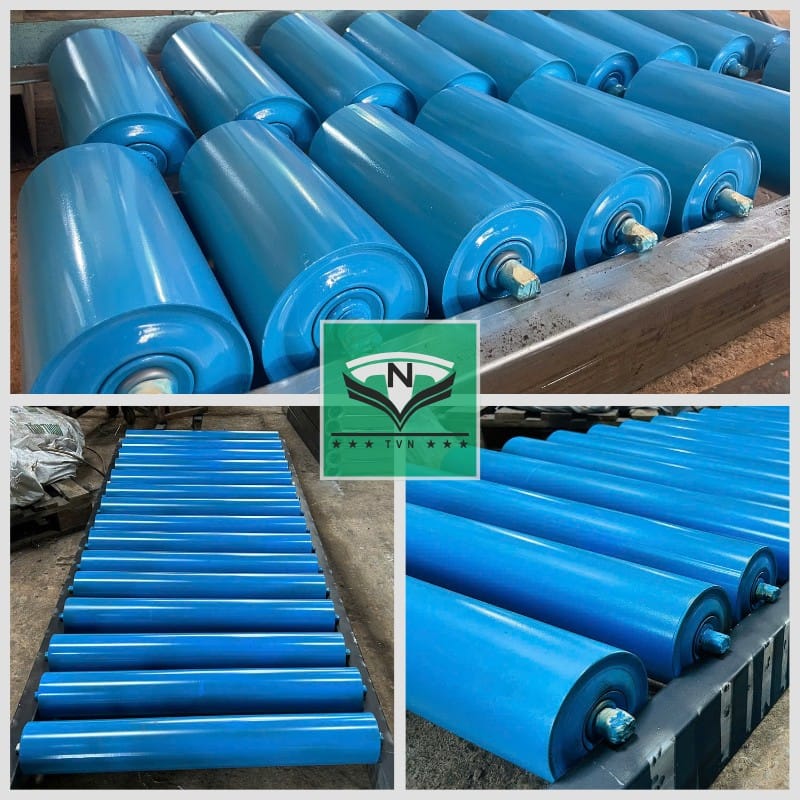

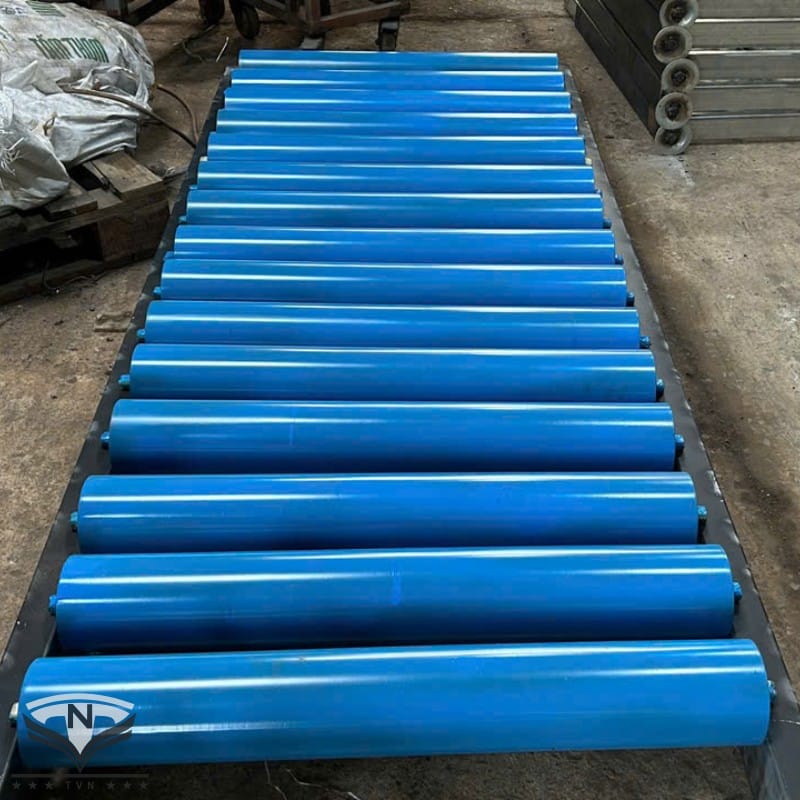

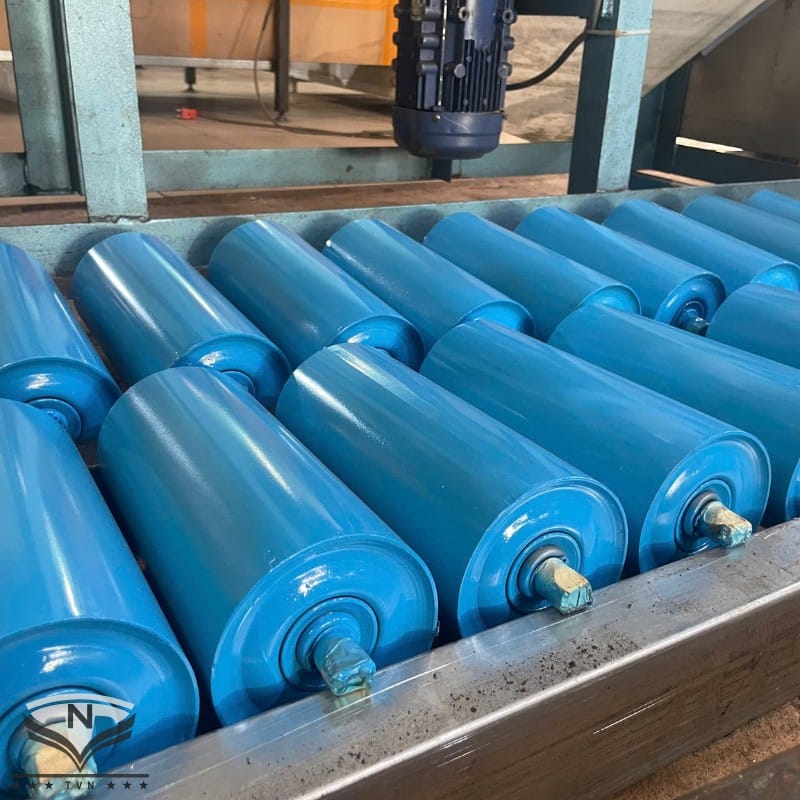

Ø114mm Heavy Duty Roller (Steel / Stainless Steel)
0 ₫
The Ø114mm Roller (D114) is a specialized product line engineered to withstand extreme loads and operate in the harshest industrial environments. Featuring a large diameter and a thick-walled structure, this roller typically serves as a belt conveyor idler (carrying idler for trough belt conveyors) in heavy industries such as mining (coal, stone), cement production, and thermal power plants, or is used for transporting super-heavy duty pallets.
Technical Specifications:
- Tube Diameter (Ø): 114mm
- Tube Material (Optional): Steel (Seamless Pipe) / Stainless Steel 304
- Wall Thickness: 3.5mm / 4.0mm / 5.0mm / 6.0mm (Extra thickness for high impact resistance)
- Shaft Material (Optional): Steel / Stainless Steel 304
- Shaft Diameter (Ø): 20mm / 25mm / 30mm
- Shaft End Type: Keyway Milled / Milled Flats (Customizable)
- Bearing System:
- Utilizes deep-pressed bearing housings or specialized cast iron pillow blocks.
- Equipped with Heavy-Duty Bearings (Series 6205, 6206, 6305…).
- Integrated Labyrinth Seal System for superior protection against dust and water ingress.
- Load Capacity: 200 – 1000 kg/roller (Depending on wall thickness and length)
- Origin: Machined at TVN Mech
