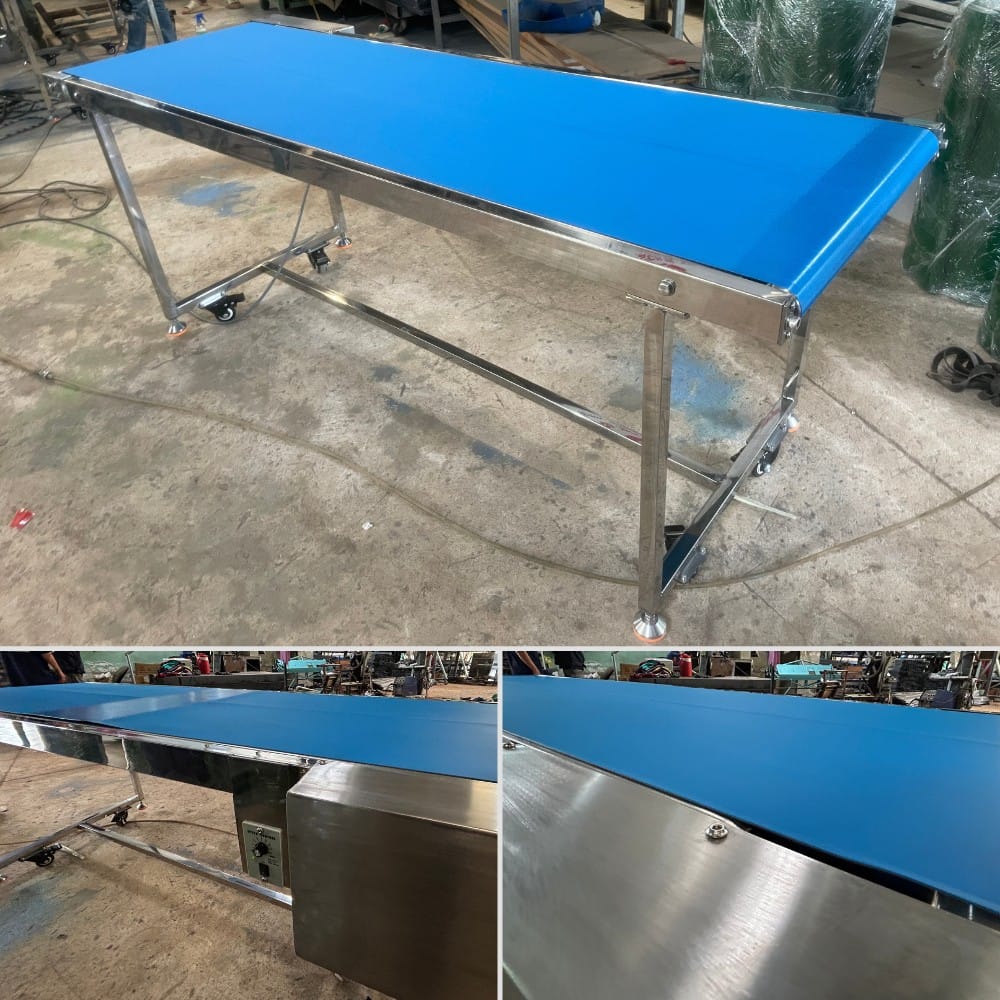

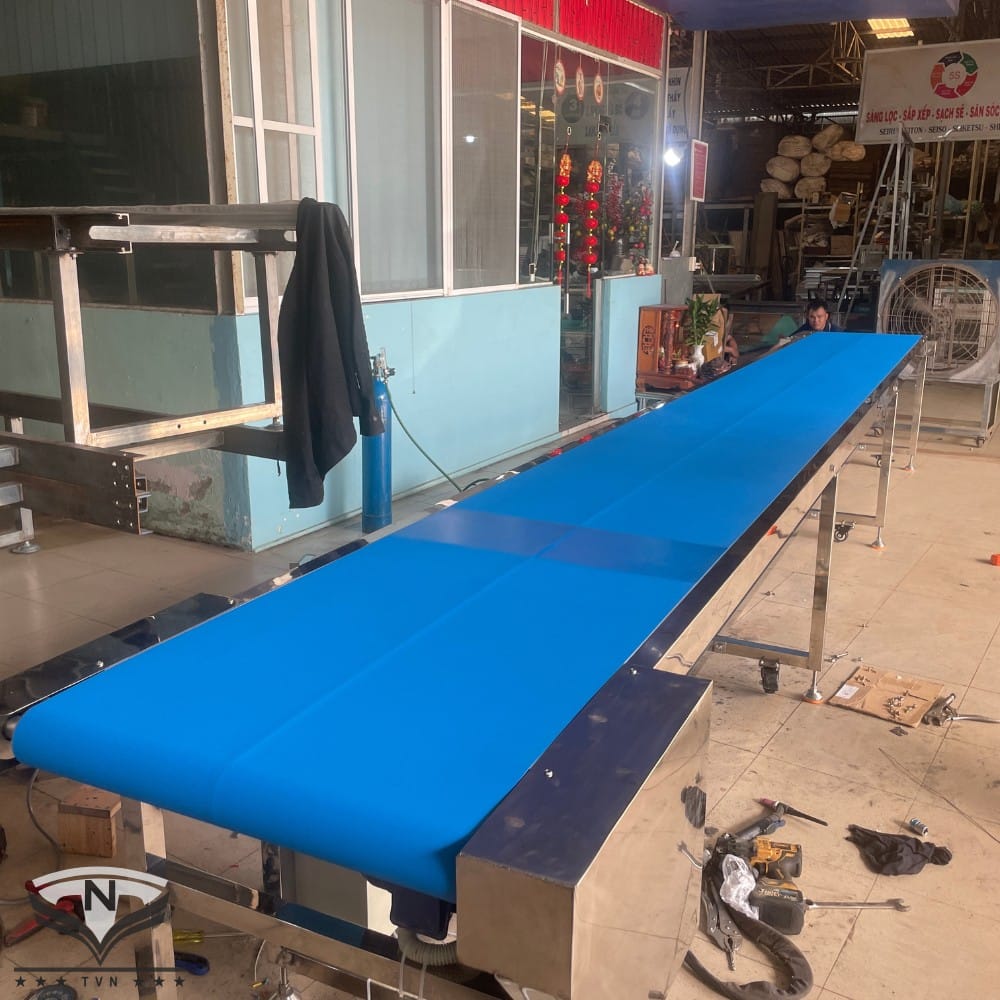

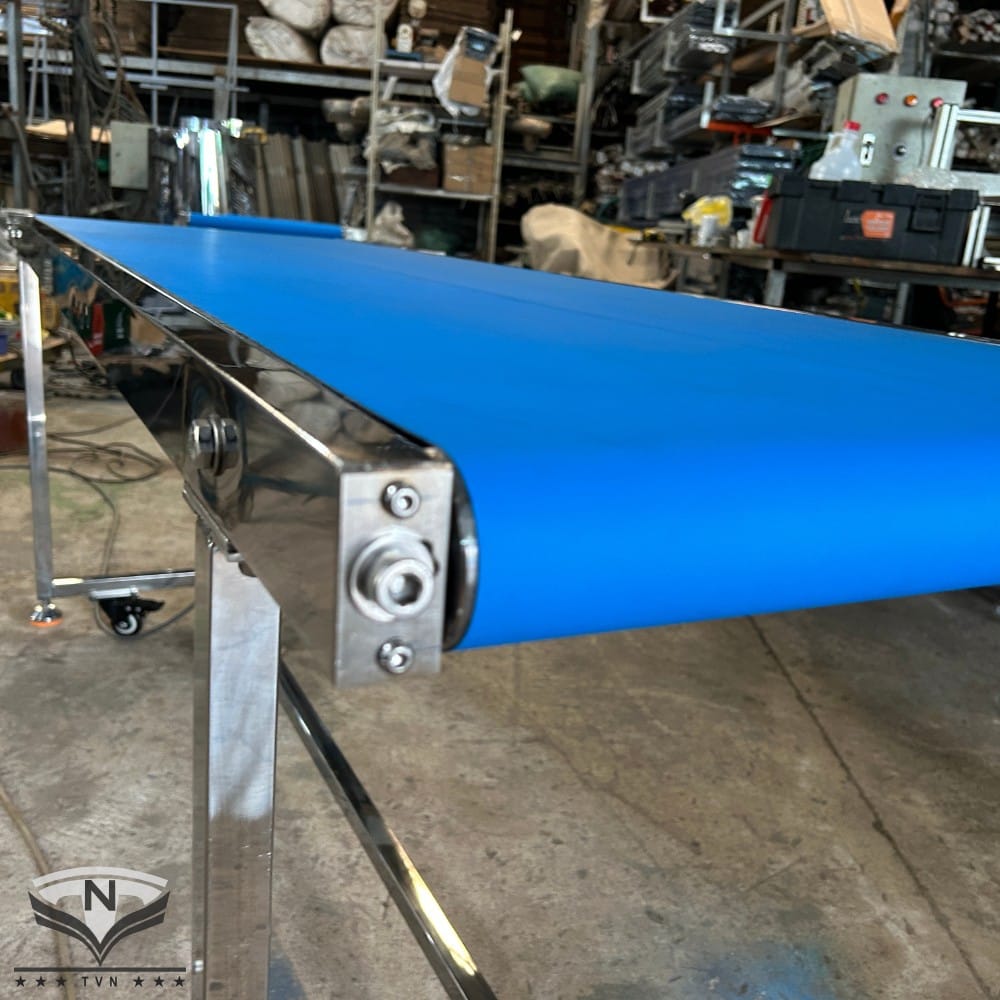

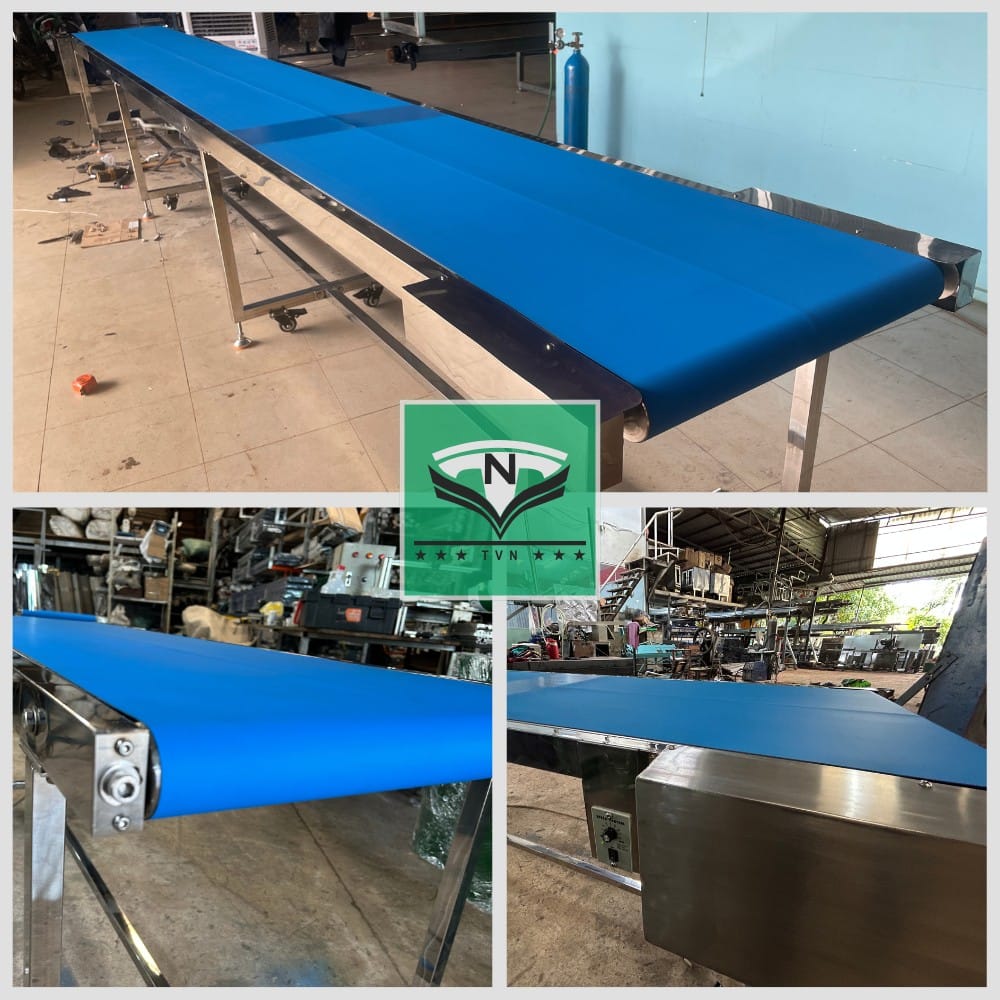

PU Conveyor Belts
0 ₫
PU Conveyor Belts are a premium product line, considered the gold standard in the food processing and pharmaceutical industries. Unlike PVC belts, PU belts offer superior resistance to oil and grease, excellent non-stick properties, and are completely non-toxic (meeting FDA/HACCP standards).
Featuring a flexible, abrasion-resistant surface that generates no dust during operation, PU conveyors are the mandatory solution for confectionery production lines, seafood processing, poultry processing, or cleanroom environments requiring strict hygiene.
Technical Specifications:
- Conveyor Length: 2m – 15m (Custom fabricated upon request)
- Conveyor Width: 300mm / 400mm / 500mm / 600mm / 800mm
- Frame Material: Stainless Steel 304 / Aluminum Profile
- PU Belt Color: White / Blue
- Belt Thickness: 0.8mm / 1.0mm / 1.5mm / 2.0mm
- Characteristics: Oil resistant, heat resistant (-10°C to +80°C), good cut resistance.
- Motor: Gear motor with Aluminum or Stainless Steel housing, integrated with Frequency Inverter for speed control.
- Speed: 10 – 40 m/min
- Load Capacity: 5 – 50 kg/m
- Origin: Designed & Manufactured by TVN Mech
Please fill out the form below, and we will contact you with a detailed quotation!
Reviews (1)
1 review for PU Conveyor Belts
Add a review
Ordering Guide
Thank you for your interest in the custom machining services at TVN Mech. Below are the ordering process and some important notes to ensure a smooth transaction.
Ordering Process:
- Submit Request: Please provide detailed information about the product you need machined (technical drawings, images, dimensions, materials, quantity) via Hotline/Zalo: 0946 507 052.
- Consultation & Quotation: The TVN Mech engineering team will review your request, advise on the optimal solution, and send a detailed quotation within 24 business hours.
- Order Confirmation & Deposit: Once the solution is agreed upon, please confirm the order and proceed with the deposit (typically 30-50% of the total order value).
- Production: TVN Mech will proceed with manufacturing the product according to the confirmed technical specifications.
- Inspection & Delivery: Upon completion, products will undergo quality control. We will notify you for final acceptance/inspection and proceed with delivery.
- Delivery Time: These are custom-made products and are not in stock. Production and delivery time ranges from 1-7 business days depending on the complexity and quantity.
- Pricing: Product prices depend on material specifications and order quantity. Please contact us directly via Hotline/Zalo 0946 507 052 for the most accurate quote.
- Return Policy: As these are custom-manufactured items based on specific requirements, we do not accept returns unless there is a technical defect caused by TVN Mech manufacturing incorrectly against the agreed specifications.
- Detailed Policies: For more information regarding payment, shipping, and warranty regulations, please visit our Sales Policy page.
